Accelerating SoC Development with eFlash/eFPGA for High-performance IoT Applications
FlashKit™-22RRAM is an energy-efficient SoC development platform implemented by UMC 22ULP process technology. It supports both Arm® Cortex-M7 and RISC-V VeeR EH1 cores and integrates advanced IPs, such as eNVM and programmable eFPGA for data retention and circuit revision after silicon. FlashKit-22RRAM enables post-silicon flexibility and is ideal solution for developing high-performance IoT and embedded applications.
Highlights
- Adjustable dynamic operating voltage: 0.8V ~ 0.9V
- Integrated eMemory ReRAM IP and QuickLogic eFPGA
- IDE support to Keil, IAR, Eclipse-based (RISC-V) environments
- Evaluation board with WiFi 802.11b/g/n, Bluetooth Low Energy (BLE), and a wide range of sensors
Features
- Process technology: UMC 22nm ULP
- Dual-core support
- Arm Cortex M7, up to 500MHz
- RISC-V VeeRV EH1 processer, up to 500MHz
- Embedded IP
- eMemory ReRAM IP for reliable, non-volatile memory
- Quicklogic eFPGA IP for flexible hardware programmability
- eNVM and eFPGA
- Built-in eNVM tailored for IoT data storage and configuration
- Reconfigurable eFPGA enables
- Post-silicon hardware customization
- Optimal software/hardware partitioning
- Peripherals interfaces
- GPHY, USB-C + Power Delivery
- QSPI, SD3.0, SLCD
- GPIO, I²C, SSP, UART, TIMER
- IDE support
- Keil, IAR, Eclipse-based IDE (RISC-V)
- J-link, J-Trace, Ulink2/Pro, CMSIS-DAP, Olimex ICE (RISC-V)
- Abundant library of device drivers, RTOS, and middleware
- Evaluation board support
- RJ45 Gigabit Ethernet
- WiFi 802.11b/g/n via UART
- Bluetooth Low Energy (BLE) via UART
- 7” capacitive touch panel (800x480) with 8/16-bit 8080 interface
- Built-in gesture, humidity, temperature, and pressure sensors
- CMOS image sensor module
Block Diagram

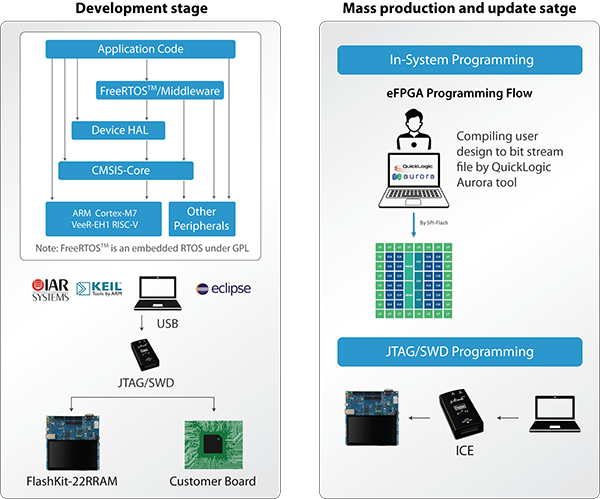

FlashKit™-22RRAM Development Environment
